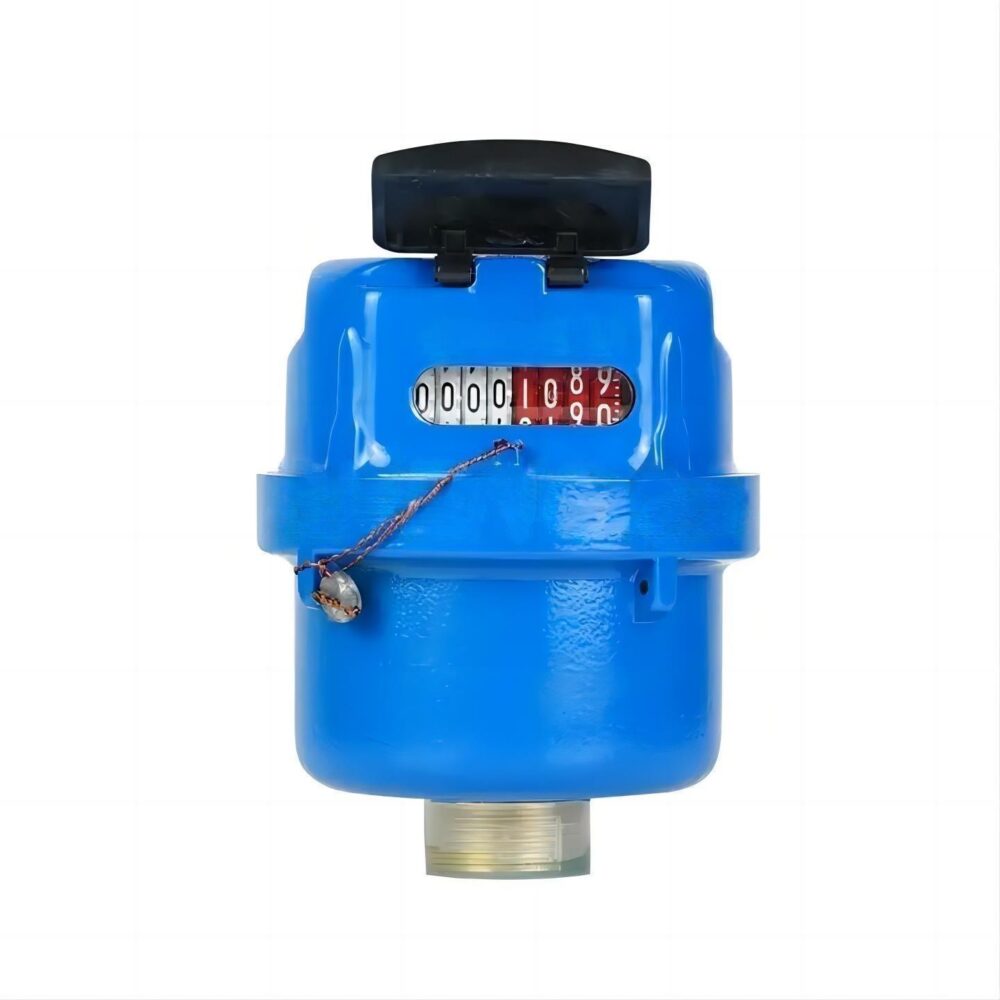

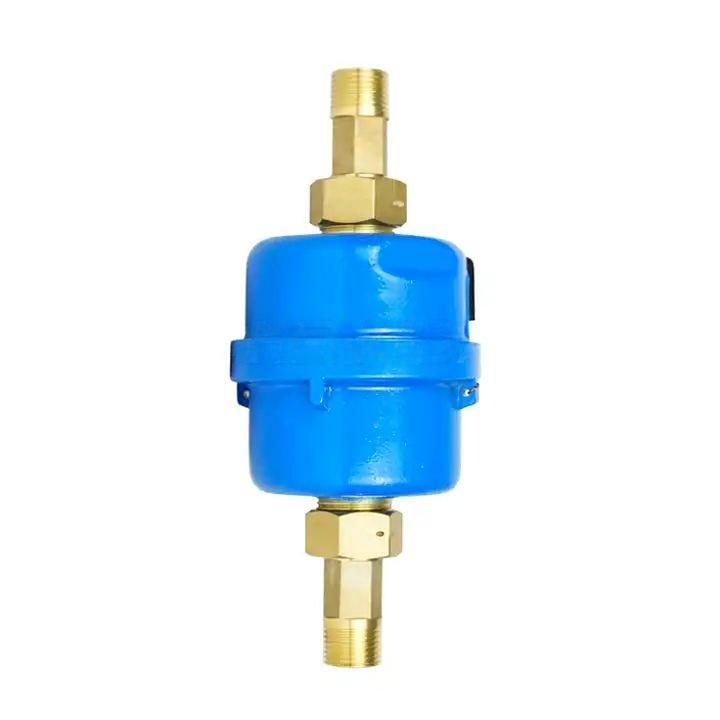

Volumetric Water Meter

This type of water meter is used to measure the total quantity of cold potable water which consumed in household or resident unit,it is also used in precision industrial enterprises or test and test places because of their accurate measurement results.


Product characteristics

1. Adopting Volumetric rotary piston principle of measurement.

2. Accurate measurement register separated from water to ensure a clear reading in long-term service.

3. Selected high quality materials for steady;reliable characteristic.

4. Liquid-sealed register.

5. Low starting flow rate Internal non return valve Internal strainer.

6.Optional Features:Provide pulse output,rs485 modbus,wired remote,pulse splitter,pulse read display.

Size of Volumetric Rotary Piston Water Meter



Flow Range


Main Technical Data

  • Cold Water temperature : ≤40°C
  • Standards: ISO4046 Class C
  • Accuracy:R=Qp/Qm=160.
  • Working pressure : ≤1Mpa
  • Certificate: ISO,CE.MIC
  • Body: Brass/Nylon
